Shown below are the current recommended macro flashes for dental photography. Please call us if you need help choosing the right flash for your camera. Macro flashes do not include support - please call us for information about support options. |
Wireless Flash Transmitters: Nikon SU-800 | Canon EL-100 |
Other Flash Accessories: LumiQuest Pocket Bouncers | Lumiquest Mini Softboxes | R2 Riser Set |
Nissin MF18 Macro Flash | |
![]() |
|
The Nissin MF18 macro flash is available for Canon (E-TTL) and Nikon (iTTL) digital cameras. The MF18 features full TTL exposure control by the camera, Manual Mode(full power to 1/64 power) and Fine Macro Mode(1/128 power to 1/1024 power) for high precision flash control. |
Nissin MF18 Macro Flash (specify camera model / lens filter size) | $499.00 | ||
AA Rechargeable NiMH battery kit - quick charger and 4 AA batteries (recommended for use with Nissin MF18 macro flash) |
|
Canon MR-14EX II Macro Flash | |
![]() |
|

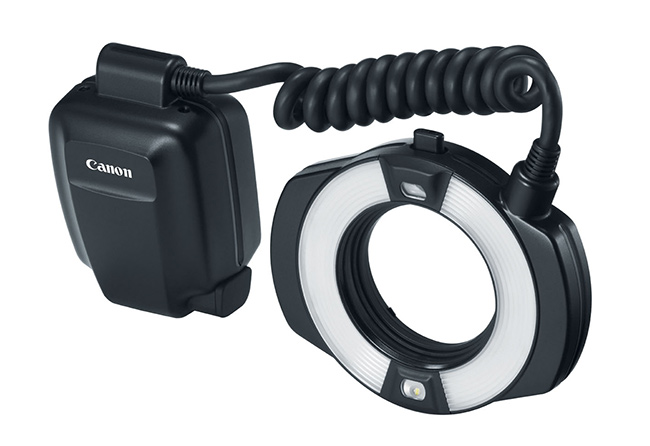

The all-new Macro Ring Lite MR-14EX II is ideal for EOS quality close-up photography when used in conjunction with one of Canon’s EF macro lenses. Redesigned as a perfect complement to contemporary digital SLR setups, it is the most advanced macro flash Canon has ever produced. |
Canon MR-14EX II Macro Flash |
|
||
Macro Flash Adapter 67 |
|
||
AA Rechargeable NiMH battery kit - quick charger and 4 AA batteries (recommended for use with Canon macro flashes) |
|

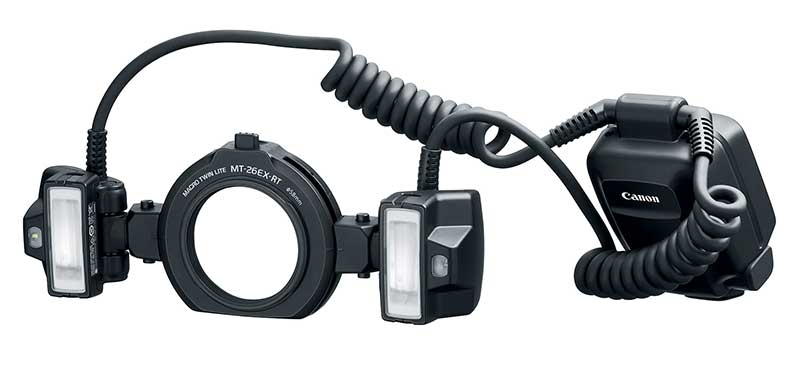

Canon MT-26EX Twin Light Macro Flash | |
![]() |
|
The individual flash heads on the MT-26EX Twin Light allow for a wide range of positioning to help elliminate/minimize specular highlights on the subject. This is particularly handy for anterior photos which will be used by a dental lab for shade matching. Posterior shots and mirror shots can be tricky with this flash as the flash heads are farther from the lens than a ring flash. Uses 4 "AA" batteries - rechargeable batteries are recommended. |
|
![]() |
Canon MT-26EX Twin Light Macro Flash |
|
||
Macro Flash Adapter 67 |
|
||
PhotoMed R2-U Dual Point Flash Bracket | |||
AA Rechargeable NiMH battery kit - quick charger and 4 AA batteries (recommended for use with Canon macro flashes) |
|

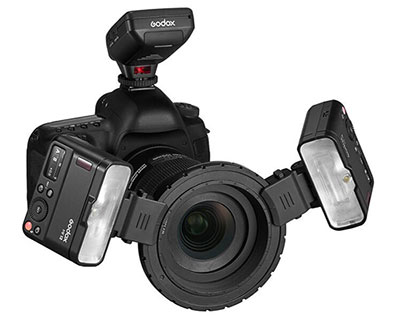

Godox MF12 Wireless Flashes with XPro Transmitter and R2-U Bracket | ||
![]() |
||
The Godox MF12 flash is a compact flash that can be controlled wirelessly by a Godox flash transmitter. The Godox wireless system uses radio communication between the transmitter and flashes instead of optical communication. The Godox MF12 is the first small macro flash that features a built-in lithium-ion battery. Godox states |
||
![]() |
The Godox MF12 System includes (2) Godox MF12 flashes, a Godox XPro Transmitter and a dual USB charger to charge both flashes from one outlet. This kit can be used with an existing R2-U Bracket or with the Godox Mounting Ring Set. It can also be used with the ShadowBox. |
Godox MF12 flash system with XPro Transmitter and USB Charger (specify Canon or Nikon) | $299.00 | ||
Godox Mounting Ring Set - includes Mounting Ring and Adapter Ring Set |
|
||
Godox MF12 flash system with XPro Transmitter, USB Charger and R2-U Bracket (specify Bracket / Canon or Nikon) | |||
AA Rechargeable NiMH battery kit - quick charger and 4 AA batteries (recommended for use with the Godox XPro Transmitter) |
|

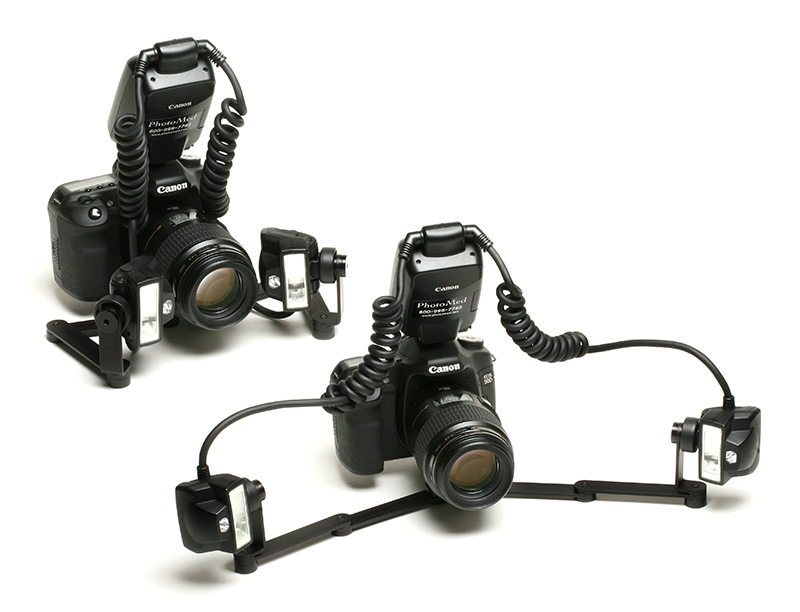

Canon EL-100 Wireless Macro System with R2-U Bracket | |
![]() |
|
The Canon EL-100 flash is a compact flash that can be controlled wirelessly by a Canon flash transmitter. The Canon Rebel T3i, T4i, T5i, T6i, T6s, T7i, 60D, 70D, 77D, 80D, 90D, 7D and 7D Mark II can control wireless flashes without additional equipment. All other Canon models need a Canon EL-100 flash to work as the transmitter on the camera's hot shoe. |
Complete Canon EL-100 system (2 flashes and R2-U bracket) | |||
Canon EL-100 Flash/Transmitter (sold individually) |
|
||
AA Rechargeable NiMH battery kit - quick charger and 4 AA batteries (recommended for use with Canon macro flashes) |
|
Nikon R1 & R1C1 Wireless Macro Flash | |
![]() |
|
The Nikon R1 Macro Flash works with all of Nikon's SLR digital cameras, but there are different configurations depending on the model:

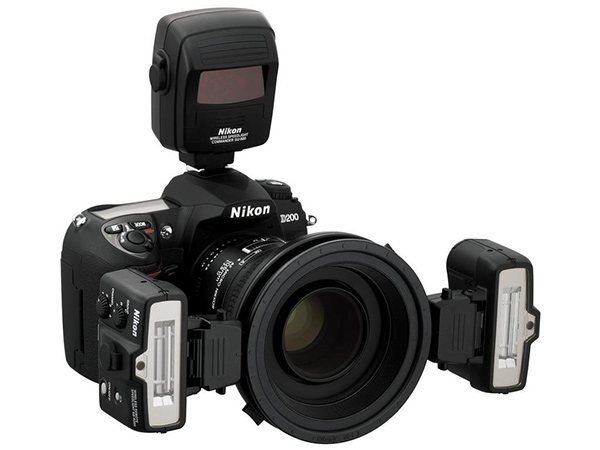

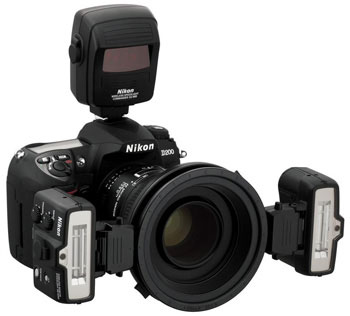

Shown above is the R1C1 (2 flash heads and SU-800 wireless transmitter) on the Nikon digital camera. |
|
![]() |
Nikon R1 Macro Flash Package |
|
||
Nikon R1C1 Macro Flash Package |
|
||

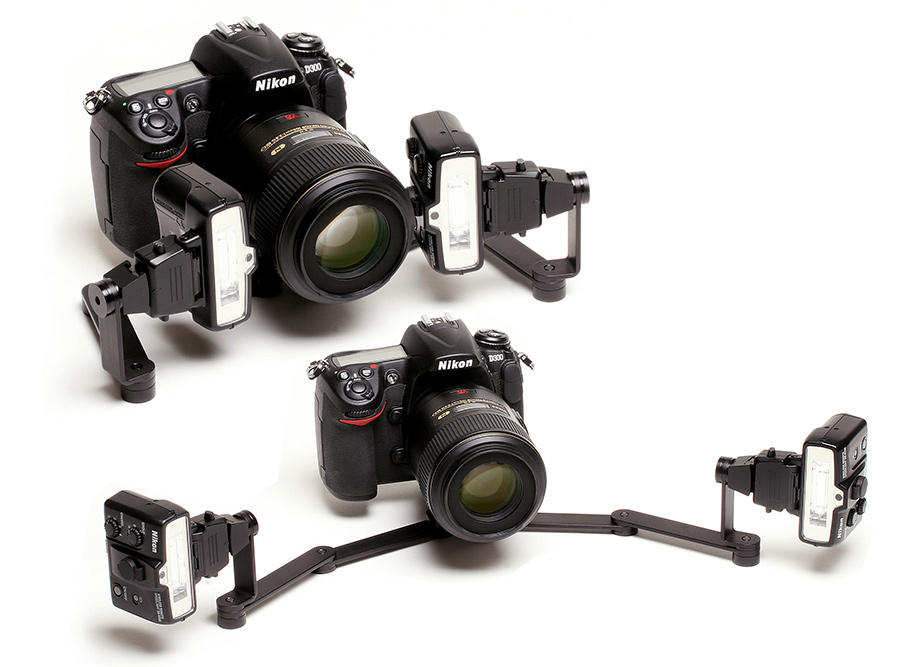

PhotoMed R2-N Bracket with (2) SB-R200 Flashes (flash heads & bracket only) | The Nikon SB-R200 flashes
are on backorder |
||
Nikon SB-R200 flash - purchased individually |
|
||
Stofen Diffuser set for Nikon SB-R200 Flash (set of two) |
|
||
Nikon SU-800 transmitter - (for Nikon cameras that do not have built-in wireless flash capability) |
|
||
CR123 battery for Nikon SB-R200 flash and SU-800 tranmitter - sold individually |
|

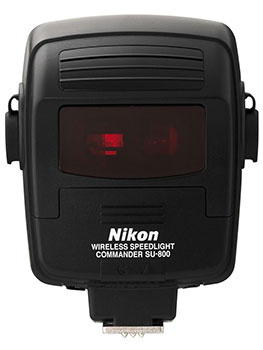

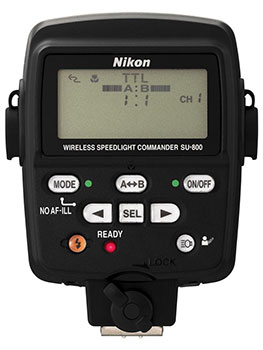

Nikon SU-800 Wireless Speedlight Commander | |
The Nikon SU-800 adds wireless flash control to Nikon cameras that do not have a built-in wireless flash transmitter allowing them to work with the Metz MS-1, Nikon SB-R200 and Nissin i40 flashes. The Nikon SU-800 uses one CR123 3v battery (not included). |
|
![]() |
![]() |
Nikon SU-800 Wireless Speedlight Commander |
|
||
CR123 battery for Nikon SU-800 Speedlight Commander - sold individually |
|
Nissin i40 Wireless Macro System with R2-U Bracket for Nikon | |
![]() |
|
The Nissin i40 is the latest small, wireless flash that can be used on the R2 bracket. It is available for Nikon cameras and can be used with cameras that have wireless flash capability (either built-in or with external transmitters).
The Nissin i40 costs a little bit more than the Nikon SB-R200 flashes but the i40 beats them in terms of power and flexibility: - the Nissin i40 is 4 times as powerful as the Nikon SB-R200 . - the Nissin i40 uses 4 AA batteries vs. a CR123 battery in the Nikon . Faster recycling and longer battery life. The PhotoMed R2-U Dual Point Flash Bracket allows the Nissin i40 flash heads to be positioned next to the lens for intraoral mirror shots and posterior views. You can also turn the flash heads out to the side for anterior esthetic views, smile shots and lab communication. The Nissin i40 System includes (2) Nissin i40 flashes and the PhotoMed R2-U flash bracket. Flash and Bracket packages are also available with the new versions of the R2 Bracket (Ballhead and Wide). The flashes and R2 bracket are also available individually. |
Complete Nissin i40 system for Nikon (2 flashes and R2-U bracket) | |||
Nissin i40 Flash for Nikon (sold individually) |
|
||
Nikon SU-800 transmitter (for Nikon cameras that do not have built-in wireless flash capability) |
|
||
8 Bay AA Rechargeable NiMH battery kit with 8 AA batteries (recommended for use with Nissin i40 flashes) |
|
LumiQuest Mini Softbox and UltraStrap | |
![]() |
|
LumiQuest Mini Softboxes are popular accessories for the dual point flash systems on R2 brackets. The LumiQuest Mini SoftBox diffuses light with the flash in the direct flash position. It enlarges the light source 4-5 times the flash head itself. |
LumiQuest Mini Softbox/UltraStrap Set - includes 2 Mini Softboxes and 2 UltraStraps |
|
LumiQuest Pocket Bouncer and UltraStrap | |
![]() |
|

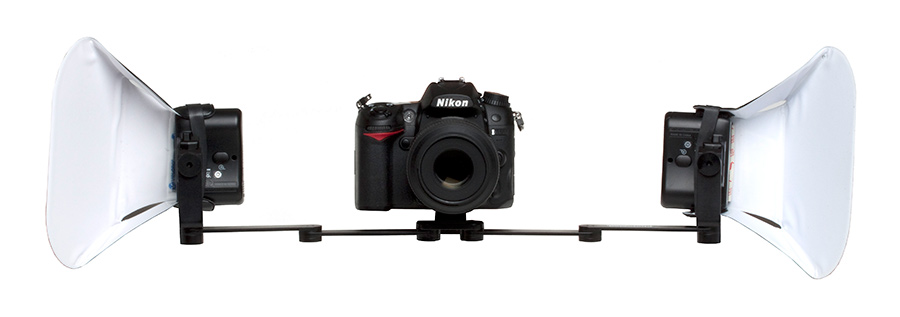

LumiQuest Pocket Bouncers are popular accessories for the dual point flash systems on R2 brackets. The Pocket Bouncer redirects light at a 90° angle from the flash to soften the quality of the light by enlarging the light roughly 6-8 times over the size of the flash head itself. |
LumiQuest Pocket Bouncer/UltraStrap Set - includes 2 Pocket Bouncers and 2 UltraStraps |
|
Risers for R2 Bracket and Lumiquest Pocket Bouncers | |

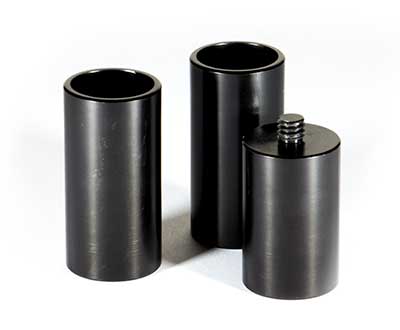

The new R2 Risers are designed to raise the R2 bracket up so that when you set it down, the Pocket Bouncers do not

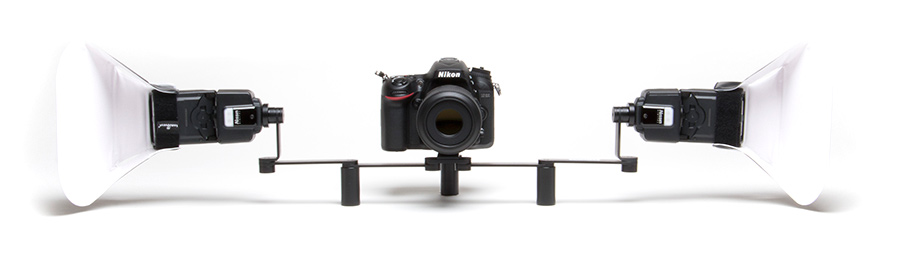

come in contact with the table surface. The Riser set includes a threaded riser that screws into the bracket tripod screw and two risers that attach to the hinge screws. The bottom photo shows a complete camera system with the Pocket Bouncers attached to the flashes and the Riser set in place. |
|
![]() |
![]() |
![]() |
|
![]() |
R2 Riser Set |
|
